Multifunctional Punching And Shearing Machine Model QJ35
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Material | Metal Round Bars， Square Bars, Angles, Flat Bars |
|---|---|---|---|
| Function | Cutting Punching | Warranty | 12 Months |
| Color | Blue | MOQ | 1 Set |
| Service | 24 Hour Online Services | Port | Qingdao Port |
| Round Bar Diameter (mm) | Diameter 31mm | CNC Or Not | Not CNC |
You can tick the products you need and communicate with us in the message board.
| Name | Specification | |
|---|---|---|
| Color | Black & White | |
| Controlling System Language | English （Option：Russia） |
Product Description

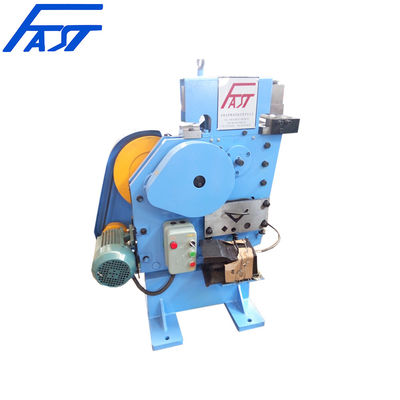

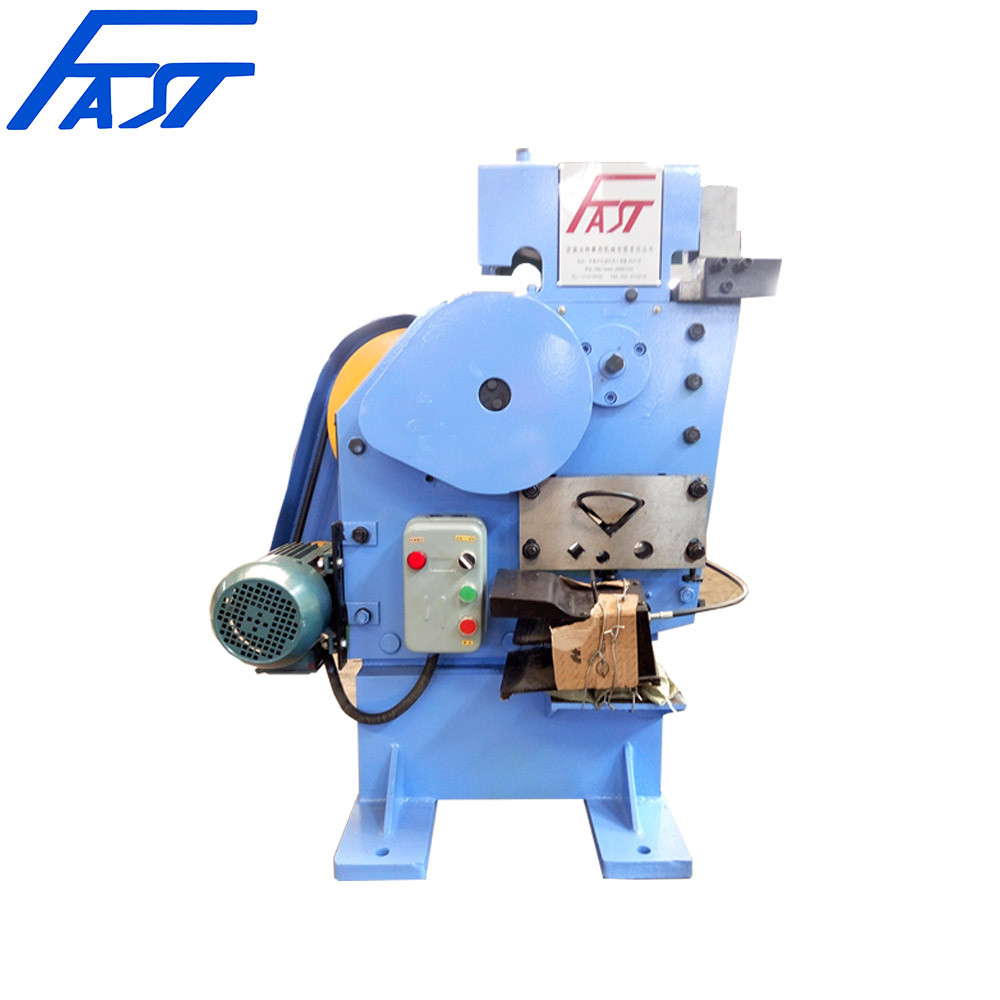

Multifunctional Punching And Shearing Machine Model QJ35
APPLICATION
This machine is used for punching and cutting on round bars, square bars, equilateral angles, Flat bars. This machine can cut 45° and 90°angles and punch Max. diameter φ31mm.
TECHNICAL DATA
| Model | Q32J-8 | Q32J-10 | Q32J-12 |
| Round Bar Diameter (mm) | φ30 | φ30 | φ30 |
| Square Bar Size L*W (mm) | 20*20 | 20*20 | 35*35 |
| Equilateral Angles Size L*L*Thick.(mm) | 75*75*8 | 100*100*10 | 125*125*12 |
| Flat Bar Size W *Thick. (mm) | 100*8 | 200*10 | 320*12 |
| Cutting Capability L *L* Thick.(mm) | 45°:50*50*690°:70*70*6 | 45°:50*50*1090°:70*70*10 | 45°:50*50*1290°:70*70*12 |
| Punching Capability Diameter * Thickness(mm) | Φ22*10 | Φ22*10 | Φ31*12 |
QJ35 Technical Data
| Punching Force | 600kN |
| Tool Stroke | 36mm |
| Power | 4kW |
| Voltage | 380V (optional 415V/220V) |
| Outline dimension | 900*500*1100mm |
| Weight | 1.5T |
| Punching Hole |
φ31*12, slot hole:40*21*12mm |
| Shearing angle steel | 125*125*12mm |
| Shear Square steel | 35*35mm |
| Shearing flat steel | 320*12mm |
| Round steel | φ 40 |
| Slot steel | GB140# |
| Cut Corner |
45 ° L50*50mm； 90° L75*75mm |
★ All of these models can be customized according to customer requirements.

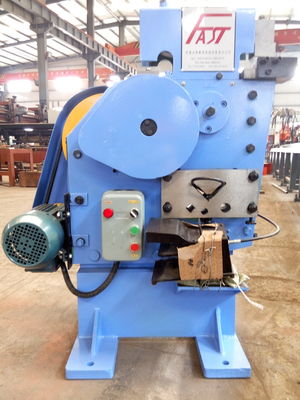

DETAIL IMAGES
