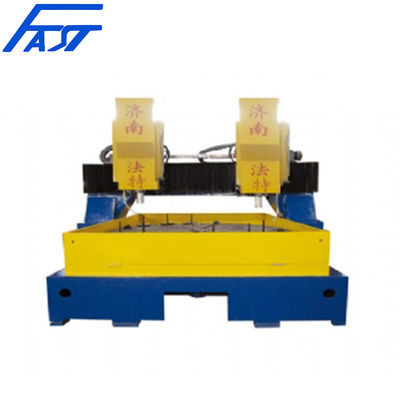

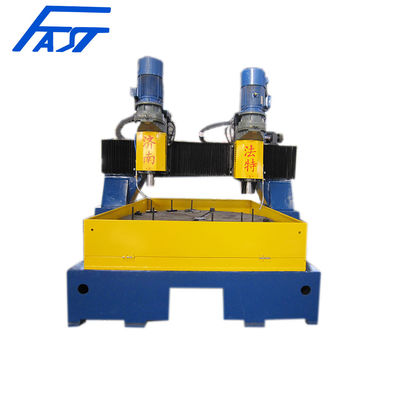

CNC Flange Specialized Drilling Machine Double Spindle Model FLZ1800 Round table

CNC Flange Specialized Drilling Machine Double Spindle Model FLZ1800

APPLICATION

This machine is mainly specialized used for drilling round flanges processing. It can process through holes and blind holes on single material parts and composite materials. It can also mill pipe holes and expand pipe grooves (using special tools).Also, it can be used for drilling plates in steel structure industries such as construction, bridges, and iron towers. It can realize automation, high precision, multiple varieties and mass production.

FEATURES

1. This machine is fully digitally controlled. CNC system controls servo automatically position and feed to ensure the accuracy of the drilling position;

2. High drilling accuracy CNC drilling power head. It is easy to quantify the depth; It has the functions of drilling blind holes, through holes, reaming and chamfering;

3. Automatic lubrication device & Protection device. All moving (rotating) parts are automatically lubricated regularly;

4. Anti rusty stainless steel guardrail around the workbench;

5. Full digital numerical control system control:

-Chip breaking function; Tool lifting chip removal function;

-Automatically converting CAD graphics into processing programs function;

- Adjusting the feed and speed according to different apertures,

-The standard numerical control system adopts the German Siemens numerical control system. It is equipped with a USB interface and an LCD liquid crystal display. The operation interface has functions such as human-machine dialogue, error compensation, and automatic alarm.

-Hole position preview and re-inspection function.

TECHNICAL DATA

1．Single or two axes CNC control
2．CNC,PLC control,CRT display
3．Putting the dimension of workpiece to computer,once entered can be used repeatly.
4．Numerical controlled rotary-type worktable
5．Rapid hydraulic positiong and clamp,high accuracy
6．Coolant automatic revolving
7．Self controlled drilling head stroke,go back quickly after drilling through
8．Equipped parts are of high quality,with high reliability
9．Max dimension of workpiece: Φ1200×80mm
10. Max drilling diameter:Φ50mm
11.Feed-in speed: 240mm
12．Drilling speed: 27-35mm/min
13．Accuracy: according with GB2694-2003
